High Precision VMM Video Measuring Machine 110mm Working Distance

Name: High Precision VMM Video Measuring Machine 110mm Working Distance
Brand: WM-3D
Price: 25 USD

Quality High Precision VMM Video Measuring Machine 110mm Working Distance for sale

Place of Origin : Guangdong, China

Brand Name : WM-3D

Model Number : CNC-5040

Certification : ISO9001

Packaging Details : Professional supplier optical machinery bluelight blockers machine vision systems optometry instruments other optics instruments
CNC-5040WM Image Test Machine
Wooden case size:1450*1700*2300mm

Supply Ability : 100 Set/Sets per Month

Price : $25,000.00/sets 1-1 sets

Warranty : 1 year

Customized support : OEM, ODM, OBM

way to control : Full CNC closed loop motion control

CCD : Japanese SONYCCD

Len : high definition zoom lens/Continuous magnification 0.7-5.0x

magnification : 40-230X

Working distance : 110mm

Drive type : x/Y /z axis precision linear guide i grinding ball screw

Port : shenzhen

Contact Now

Professional supplier optical machinery bluelight blockers machine vision systems optometry instruments other optics instruments

Product Description

High Precision VMM Video Measuring Machine 110mm Working Distance

Items	CNC-3020AH			CNC-4030AH		CNC-5040AH
Dimension(mm)(L×W×H)	7008501650			8009001650		90010501650
Measuring range(mm)(X×Y×Z)	300200200			400300200		500400200
Measuring Accuracy(μm	3+L/200			3+L/200		3+L/200
Repeatability (μm)	3			3		3
Weight(kg)	300			380		450
Image and Measuring		CCD			Japanese SOnYCcD
		Lens			High definition zoomlens/Continuous magnification 0.7-5.0x
		Magnification			40-230X( For reference only. With different camera and lens the magnification will be different. )
		ptical scale resolution			x/Y/z axis o.0002mm ( 0.2um )
		Working distance			108mm
Measurement software			Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
Driving system			X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination			Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are added to different products.

Our advantage

♦High-precision fully automatic measurement, CNC four-axis control.
♦High-precision and high-strength machine: 00-class marble base/column/workbench with high precision and good stability
♦XYZ three-axis imported precision linear guide / imported grinding grade ball screw drive system, long life and good stability.0.2um.High precision metal patch ruler o.2um.
♦The Wm0750 automatic zoom opticallens enables fully automatic measurement without the need for zoom correction.
♦HD SONY CcD camera with high quality measurement screen
♦Autofocus measurement, optical altimetry flatness, UK RENISHAW contact probe,
♦Program-controlled five-ring eight-zone surace light souceLED contour light source, coaxial light source.Different colors are added to different products.
♦It is equipped with a joystick for easy operation at any position.
♦The navigation CCD camera indicates the measurement position, which is quick to locate and convenient for measurement.
♦Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.

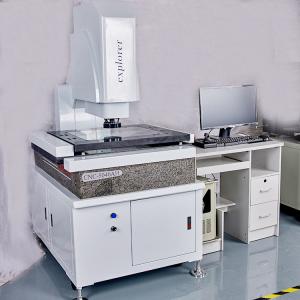

High Precision VMM Video Measuring Machine 110mm Working Distance

High Precision VMM Video Measuring Machine

VMM Video Measuring Machine 110mm

High Precision VMM Video Measuring Machine 110mm Working Distance Images
